Beacon


Sunday 21 October 2008 with the collaboration of

Mattia IW1GLM  Piero IZ1ERR  Michele I1TEX   and  Marcello IK1YWB

two beacons on CW in the QTH  in JN34OS, 1550 mt S.L.M.

The beacons are active on the bands of the 23cm and the 3cm

Sunday 11 October 2009 with the collaboration of

Mattia IW1GLM Marcello IK1YWB Roberto IK2OFO and Mauro IZ1OTT

one new beacons on CW in the 24 GHZ

Thursday 30 June 2011 with the collaboration of

Mattia IW1GLM Marcello IK1YWB Roberto IK2OFO and Mauro IZ1OTT

one new beacons on CW in the 5,7GHz

on The 19 October 2015

replace frequency Beacon 5.7GHz 10GHz 24GHz

New Beacon 2320

special Tanks to I3ZHN for new OCXO



BEACON  6 cm IK1YWB/B:

Frequenza:  5760.807 Mhz
Potenza:
900 mW
Antenna:     20 slot
Guadagno:
15 db
QTF:
55°





BEACON  1,5cm IK1YWB/B:

Frequenza:  24048.613 Mhz
Potenza:
900 mW
Antenna:     Sectorial
Guadagno:
25db
QTF:            55°




 BEACON 23cm IZ1ERR/B:

Frequenza:  1296.477 Mhz
Potenza:
1000 mW
Antenna:
Pannello Osmica
Guadagno:
12db
QTF:
55°



 BEACON  3cm IZ1ERR/B:

Frequenza:  10368.810 Mhz
Potenza:
1050 mW
Antenna:    20 Slot
Guadagno:
15db
QTF:
55°



BEACON  13cm IW1GLM/B:

Frequenza:  2320.804 Mhz
Potenza:
1050 mW
Antenna:    12 Slot
Guadagno:
15db
QTF:
55°

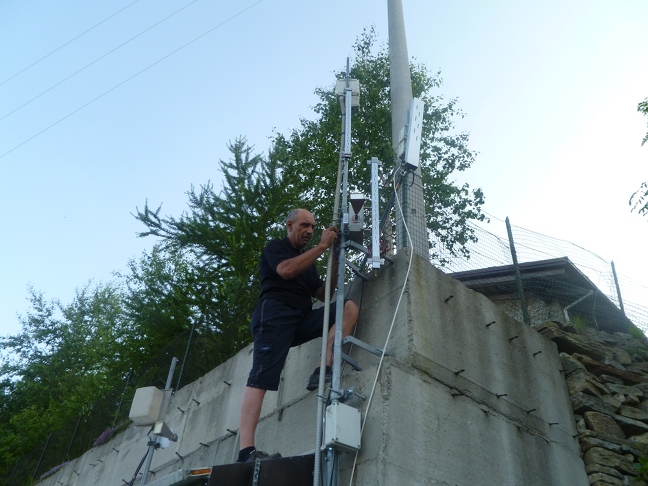

Many thanks to Michele I1TEX for building, testing and helping us to install the beacon!

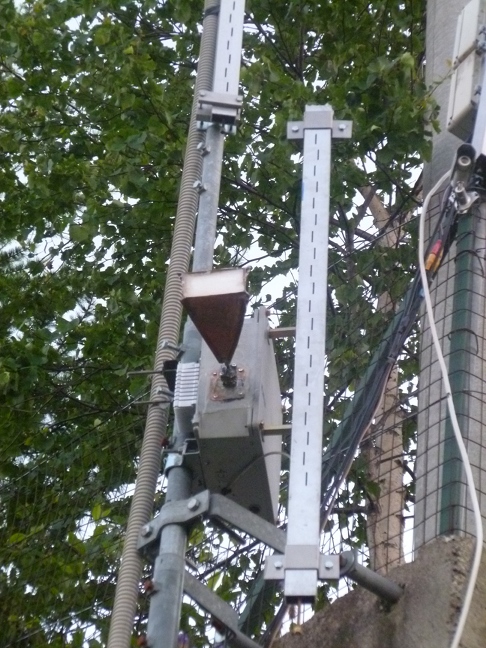

Antenne







location:

44.45.15,40 N

007.13.20,62 E
